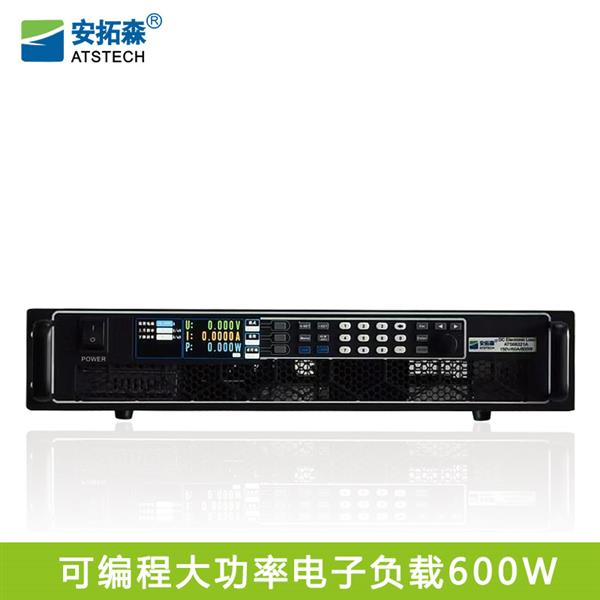

The ATS66321A series high-power programmable DC electronic load is a newly launched DC high-power electronic load by Shenzhen Antuosen Instrument Co., Ltd. The voltage range is divided into three types: 150V, 600V, and 1200V, and the power range is from 600W to 6kW. This series of electronic loads is mainly used for product testing in multiple fields such as new energy vehicle OBC, power batteries, charging piles, power electronics, servo/server power supplies, high-voltage UPS, military, photovoltaic, grid energy storage, aerospace, etc. Adopting a new generation digital controller, it has five basic modes and seven advanced modes built-in, and provides serialization function to meet users' programming, automation testing and other needs. The ATS66321A series electronic load has a wide range of voltage and current input, meeting various testing requirements for high current, low voltage, or high voltage, low current. Adopting a high power density design, the volume is half that of traditional electronic loads, and the weight is one-third.

Product Detailed Introduction


-Single machine power: 600W~6KW, with the maximum power expandable to 60KW through main/slave parallel connection;

-Precision measurement technology, supporting voltage of 0.025%+0.025% F.S. and current;

-Accuracy of 0.05%+0.05% F.S. and 0.2%+0.2% F.S. for power (this indicator remains unchanged at high temperatures);

-Wide range, providing a passive current range close to traditional high-power loads at the same capacity;

-Excellent dynamic characteristics, with a maximum current acceleration capability of 96A/us;

-Built in functions such as constant current, constant voltage, constant resistance, constant power, short-circuit simulation overcurrent protection testing, serialization testing, etc;

-Built in temperature acquisition chip and speed regulating fan control;

-Complete protection functions, supporting overcurrent/overvoltage/overtemperature/reverse connection/SENSE protection, etc;
