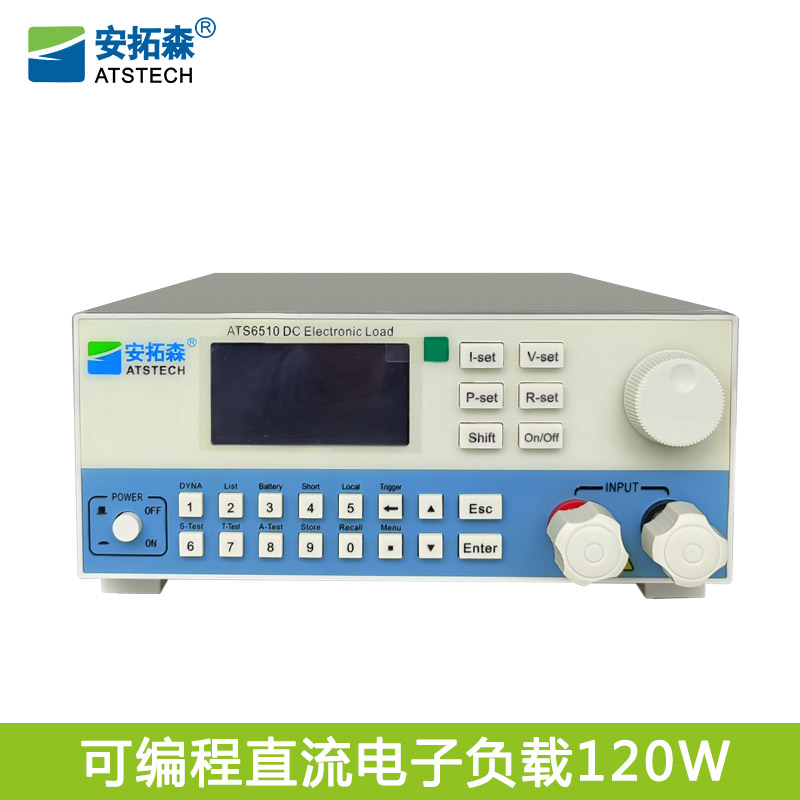

Product Name: Programmable DC Electronic Load

Product model: ATS6510 series

Voltage range: 0-150V (customizable)

Current range: 0-20A (customizable)

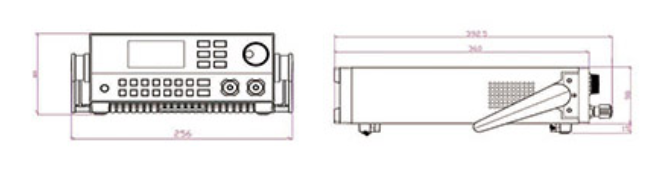

Product installation size:

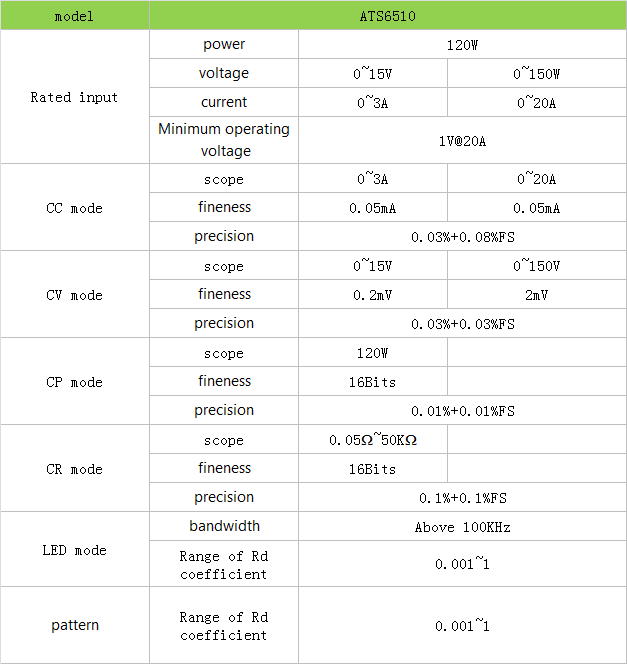

Product Detailed Introduction


 -Maximum power 120W; maximum current 20A; maximum voltage 150V;

-Supports synchronous belt loading with 16 loads, meeting the testing needs of multiple output power supplies;

-Supports synchronous parallel operation of 16 loads to meet the power expansion needs of a single output power supply. ★ 500KHz synchronous sampling, 10Hz, 10uA, 0.1mV stable resolution output;

-Measurement of voltage/current ripple (Vpp/lpp), peak value (Vp+/lp+), and valley value (Vp -/Ip -);

-The fastest full-scale current rise time is 10uS, and the programmable current rise/fall rate. ★ Four basic operating modes: constant current, constant voltage, constant power, and constant resistance;

-Support real LED simulation function;

-Support CV/CC source constant power/constant resistance, intelligent detection and matching of CV/CC source in constant resistance mode;

-Up to 50KHz dynamic load mode (DYNA), with voltage peak valley Vp+and Vp - measurement;

-Support overcurrent protection testing (OCP) and maximum power point capture (Pmax);

-Support load effect measurement; -High speed dynamic frequency conversion scanning technology (sweep);

-Support time measurement (Timing). Support overvoltage protection (OVP) testing;

-Built in waveform generator, which can simulate various loaded waveforms in List mode;

-Support short circuit simulation function;

-Support single machine automatic testing (A-Test), support all extension modes, and support all detection items;

-Support internal resistance and battery level testing (Battery);

-Support remote compensation;

-Support Von and Voff functions;

-Shortcuts support the storage and retrieval of 20 sets of global data;

-High brightness full view large screen graphic dot matrix display screen;

-Overvoltage/overcurrent/overpower/overheat protection; Power polarity reverse protection;
